Product Description

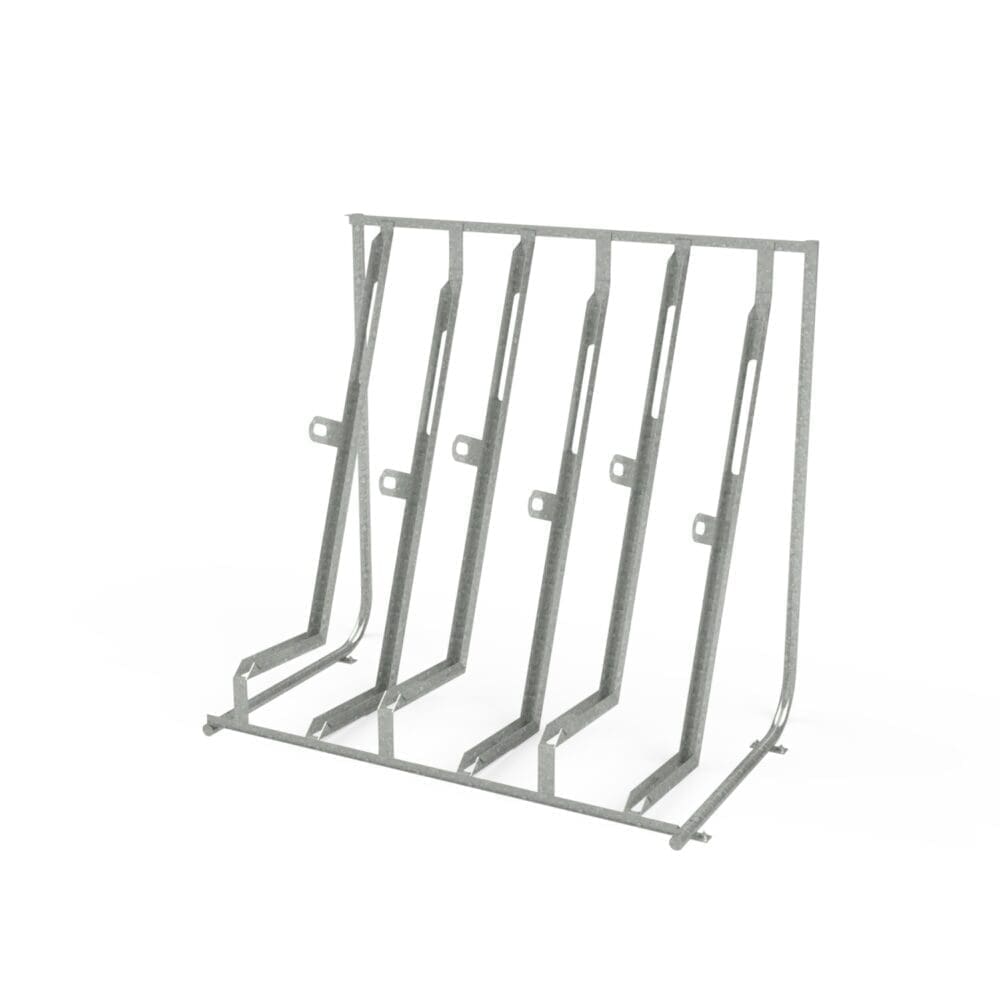

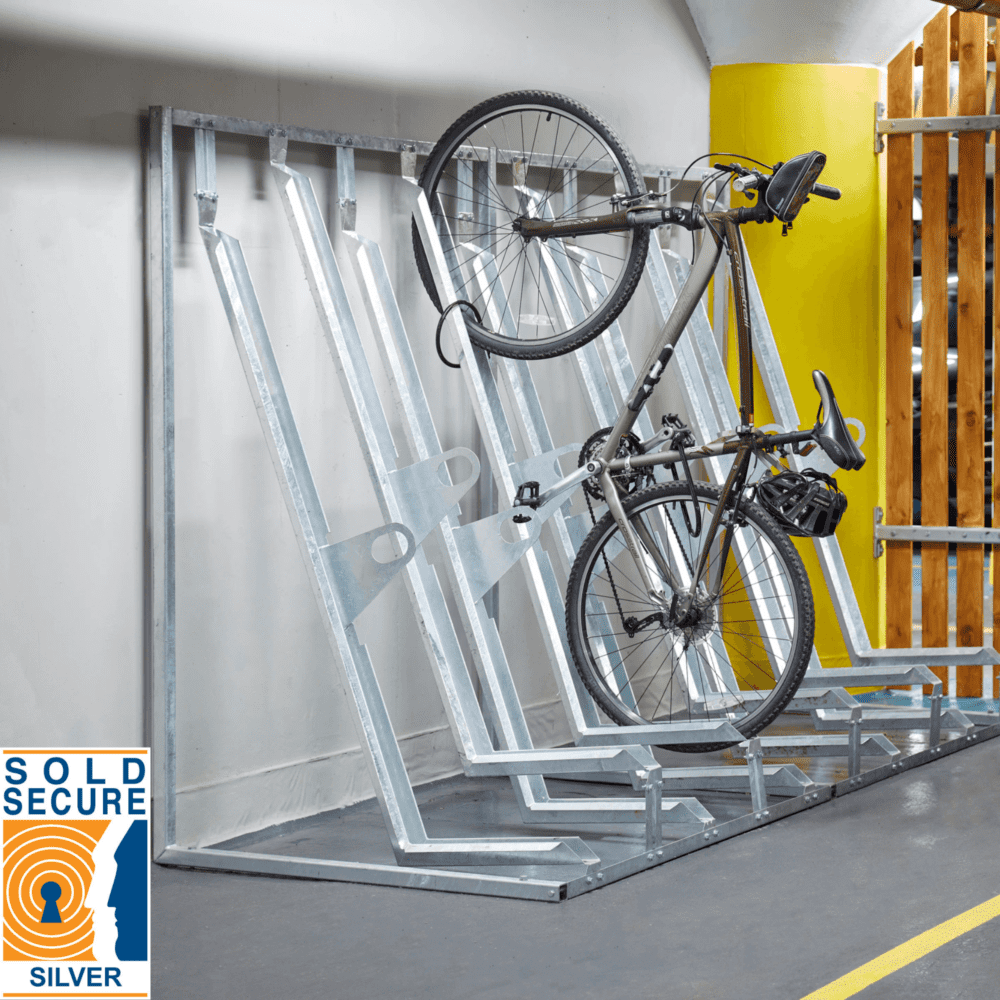

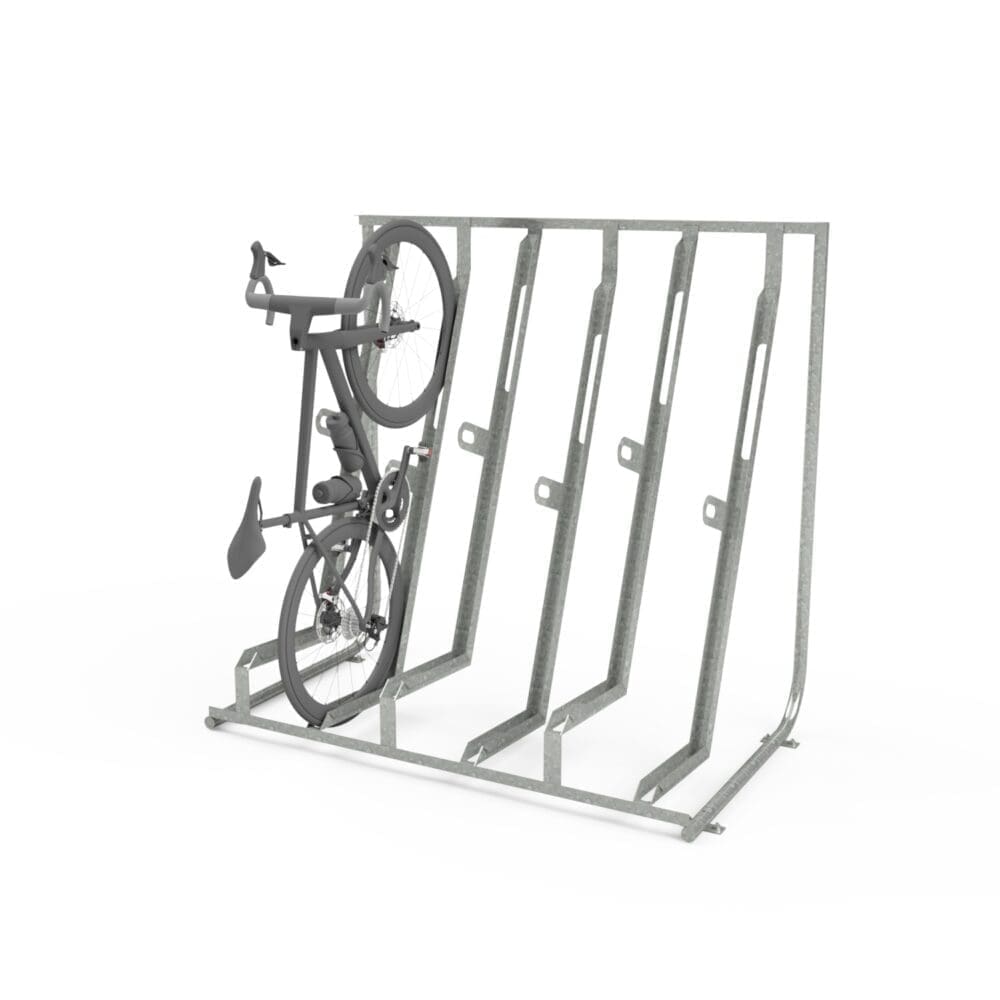

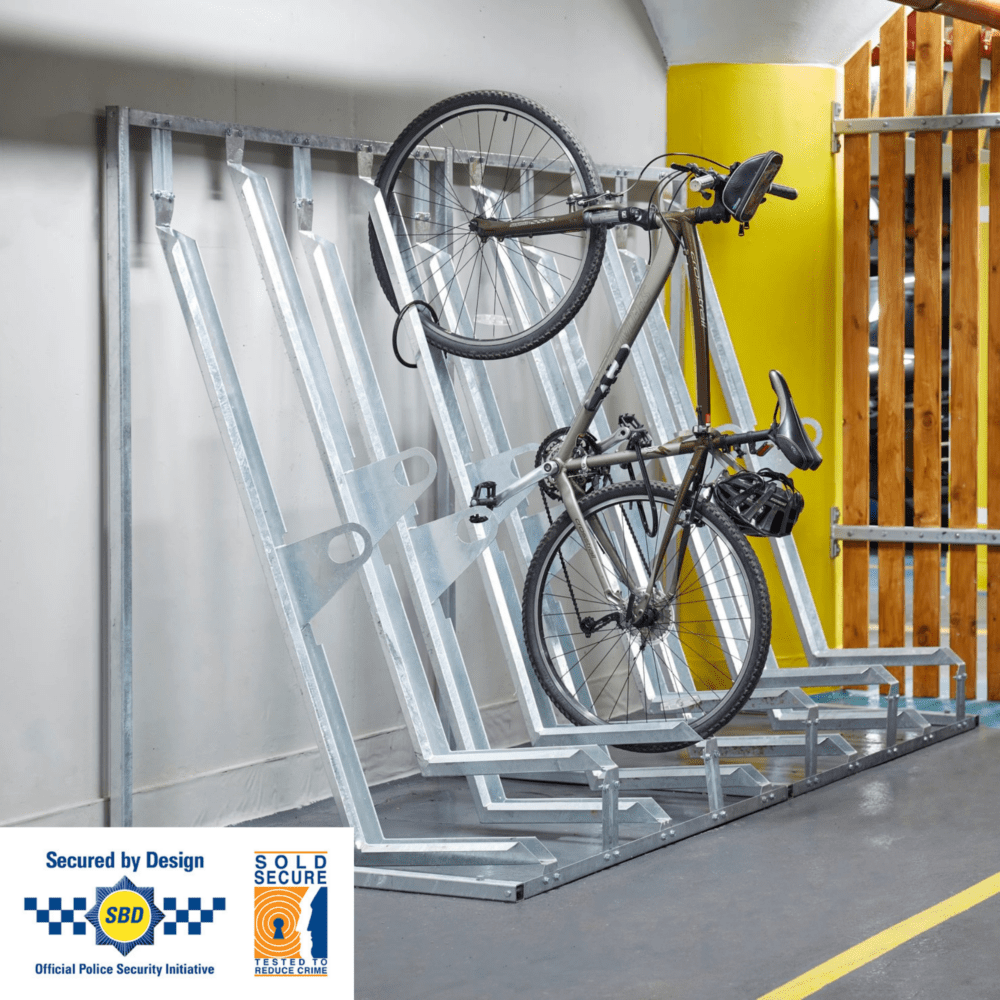

Secured by Design Semi Vertical Bike Rack
The Semi Vertical Cycle Rack is a compact, high-capacity storage solution that maximises cycle parking density without the lifting effort of a two-tier system. Our Secured by Design variant builds on this proven design with Sold Secure Silver accreditation and Police Preferred Specification status, giving architects, developers and contractors a security-certified racking solution for projects where independently accredited cycle storage is required.
Independently Tested Security
The Sold Secure Silver rating means this rack has been independently tested against a defined tool list, including heavy manual and light electrical tools. For specifiers working to Secured by Design guidelines, local planning conditions or client security briefs, it provides documented evidence of attack resistance and a clear, auditable compliance route that standard, non-certified racks cannot offer. Built-in high-security locking hoops allow both frame and wheels to be secure to the rack, delivering reliable theft deterrence across all configurations.
Standard & E-Bike Configurations
The Secured by Design Semi Vertical Cycle Rack is available in two configurations to suit project requirements:
- Standard: Designed for conventional bicycles, with integrated high-security locking hoops and all fixtures and fittings supplied for assembly. Ideal for residential developments, commercial offices, schools and secure cycle rooms.
- E-Bike: Engineered to accommodate the increased weight and frame profiles of electric bicycles, with integrated twin-gang 13A 240V charging sockets as standard. Built to support modern commuting patterns and future-ready transport infrastructure.
Both configurations feature staggered rack heights for improved accessibility and are available in single or back-to-back layouts to maximise capacity within the available space. The e-bike variant requires a minimum ceiling height of 2.2m, making it well suited to basements, car parks and covered cycle stores.
Flexible & Scalable
The modular format means racks can be extended indefinitely to match current and future demand. Whether you need a compact installation for a small office or a large-scale deployment across a residential scheme, the system scales without compromising on security certification or build quality. Quantity discounts are available for bulk orders.
Durable & Low Maintenance
Constructed from hot-dipped galvanised steel to BS EN ISO 1461:2022, the rack is built for long-term performance in high-traffic internal and external environments. Optional polyester powder-coating in any standard RAL colour allows the rack to complement the architectural setting of the site.
Technical Specifications
- Sold Secure Silver certified – Secured by Design, Police Preferred Specification
- Hot-dipped galvanised steel to BS EN ISO 1461:2022
- High-security locking hoops included as standard
- E-bike variant: twin-gang 13A 240V charging sockets per bay
- E-bike variant: minimum 2.2m ceiling height required
- Available in single and back-to-back configurations
- Optional polyester powder-coating in any RAL colour
- Installation is available nationwide, but not required – supply-only orders are welcome
Benefits for Your Project
- Secured by Design accredited with Sold Secure Silver certification
- Meets planning requirements for secure and independently certified cycle parking
- Dedicated e-bike configuration with integrated charging as standard
- High-density storage without the lifting effort of two-tier systems
- Modular and extendable to match evolving demand
- Contributes towards BREEAM and active travel objectives
- Low ongoing maintenance requirements
- 10-year manufacturing defects warranty
Ready to Order or Request a Quote?
Contact our team for a tailored quote, design advice or installation options.
