TBSC_TTR_SBD (RENDER 03)

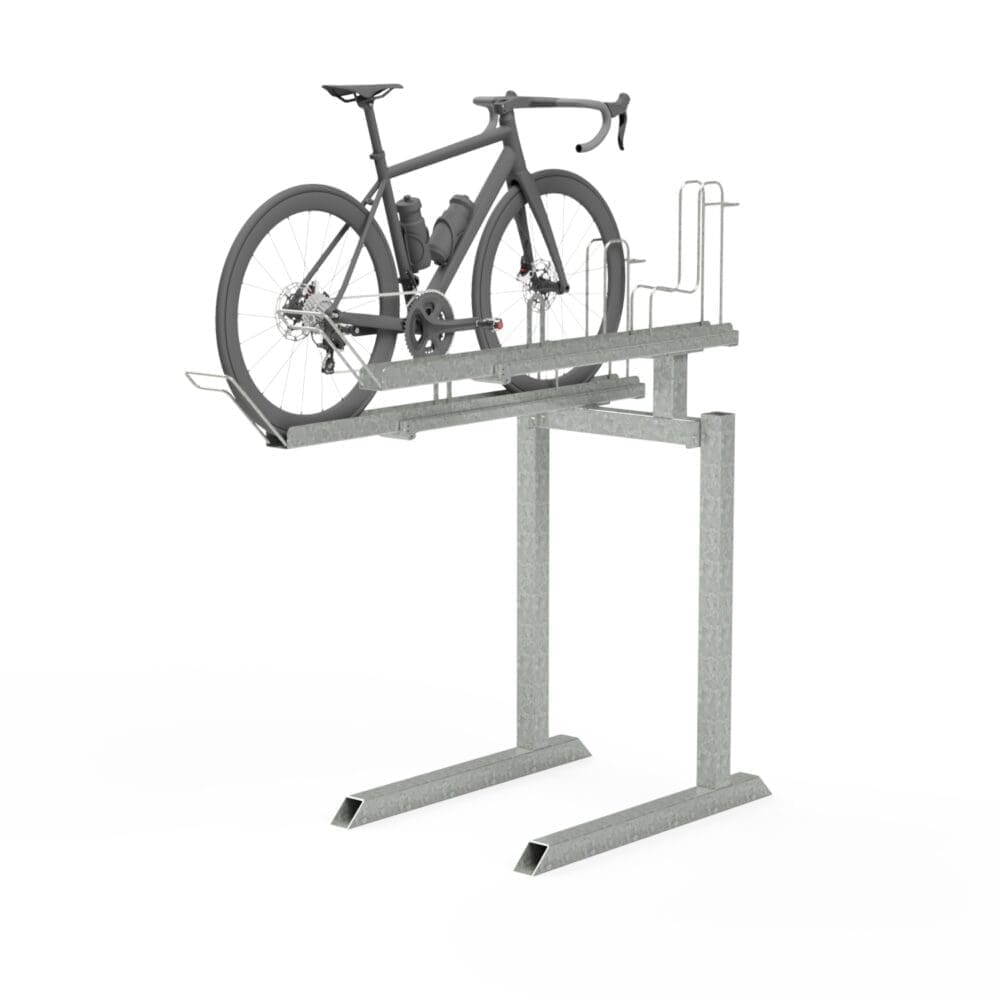

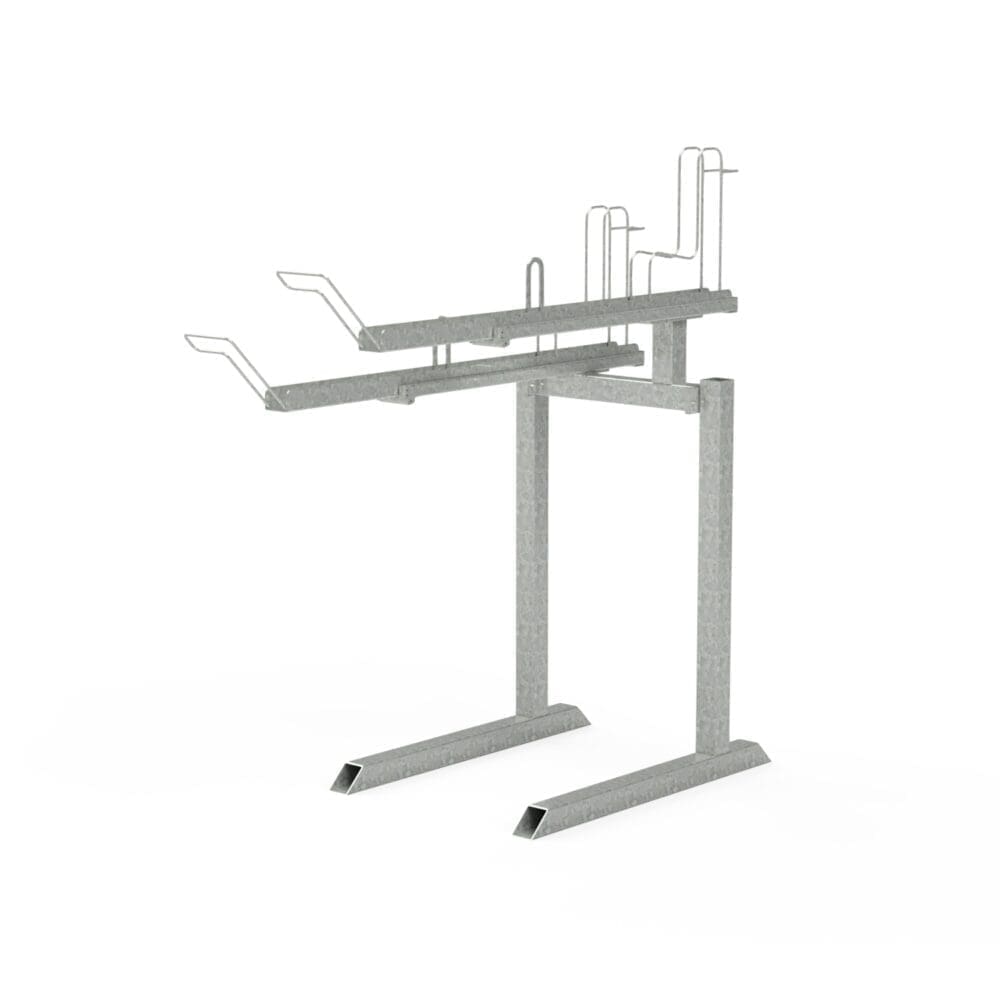

Secured by Design Two Tier Bike Rack



The standard Two Tier Cycle Rack is a well-proven product. Specifying the Secured by Design variant adds something the standard rack cannot offer: an independently verified security rating, awarded only after Sold Secure physically tested the rack against an enhanced tool list and confirmed it held. The resulting Police Preferred Specification status means that when a planning officer, procurement team or BREEAM assessor asks for evidence that cycle storage meets a recognised security standard, there is a certificate to show them, not just a specification sheet.

The structural upgrades address the weak points specific to manual two tier racking. Two locking hoops are welded together to form a single 10mm thick plate at every parking position, substantially increasing resistance at the primary point of attack. A 3mm plate covers the gap between the outer and inner, closing an access point that the standard rack leaves open. Increased material thickness to the locking hoops and end caps, a 5mm rear end cap, and security fixings with armour rings at every connection complete the upgrade.


Key Product Features:

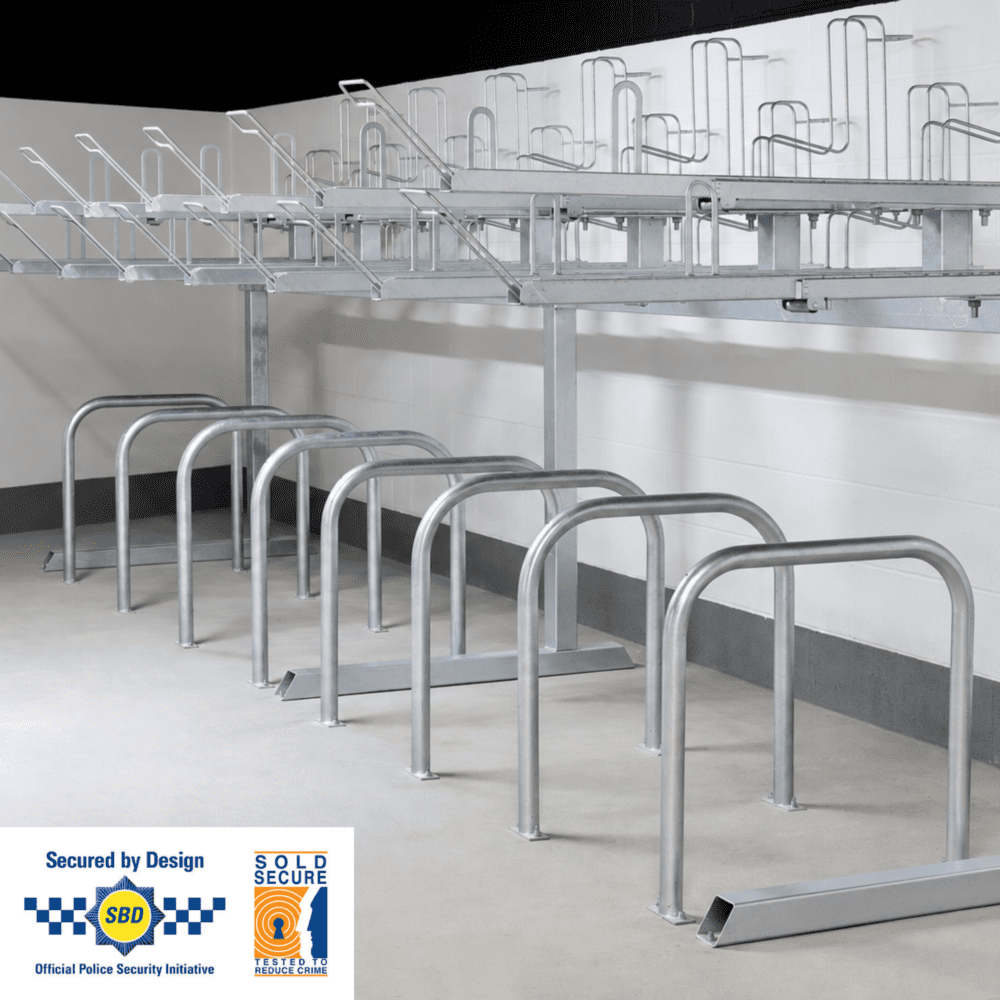

  • Secured by Design Accredited: Sold Secure Silver certified and recognised as a Police Preferred Specification product under the official UK police security initiative.
  • Tested for High-Risk Environments: Independently physically tested by Sold Secure against an enhanced tool list designed to simulate a determined attack. Suitable for higher-risk installations including transport hubs, communal areas and open-access locations.
  • Redesigned Welded Locking Hoop: Two hoops welded together to form a 10mm thick plate – a targeted structural upgrade at the primary point of attack on any two tier racking system
  • Gap Plate: A 3mm plate covers the gap between the outer and inner, closing an exploitable access point not addressed on the standard rack.
  • Increased Material Thickness: Heavier gauge locking hoops and end caps with a 5mm rear end cap reduce exploitable weak points across the rack structure.
  • Security Fixings Throughout: Armour rings to all connection points, preventing disassembly without specialist tooling.

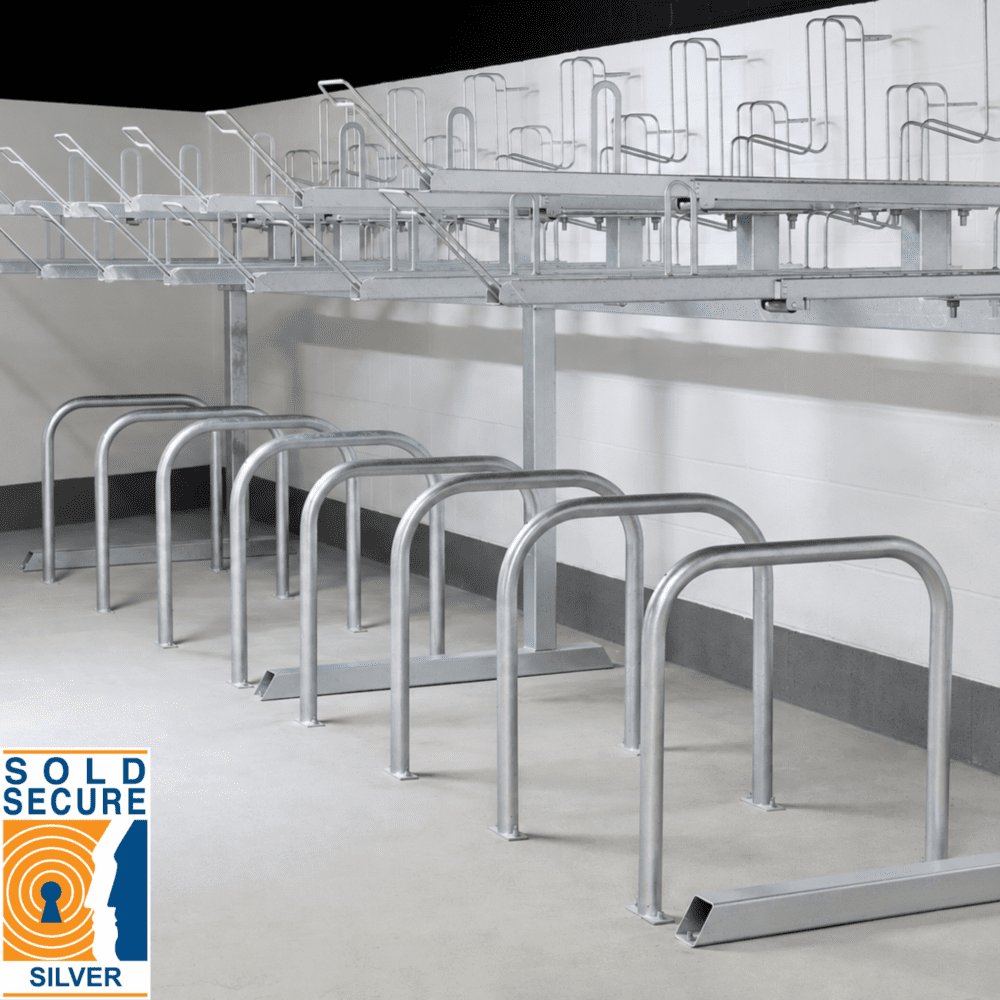

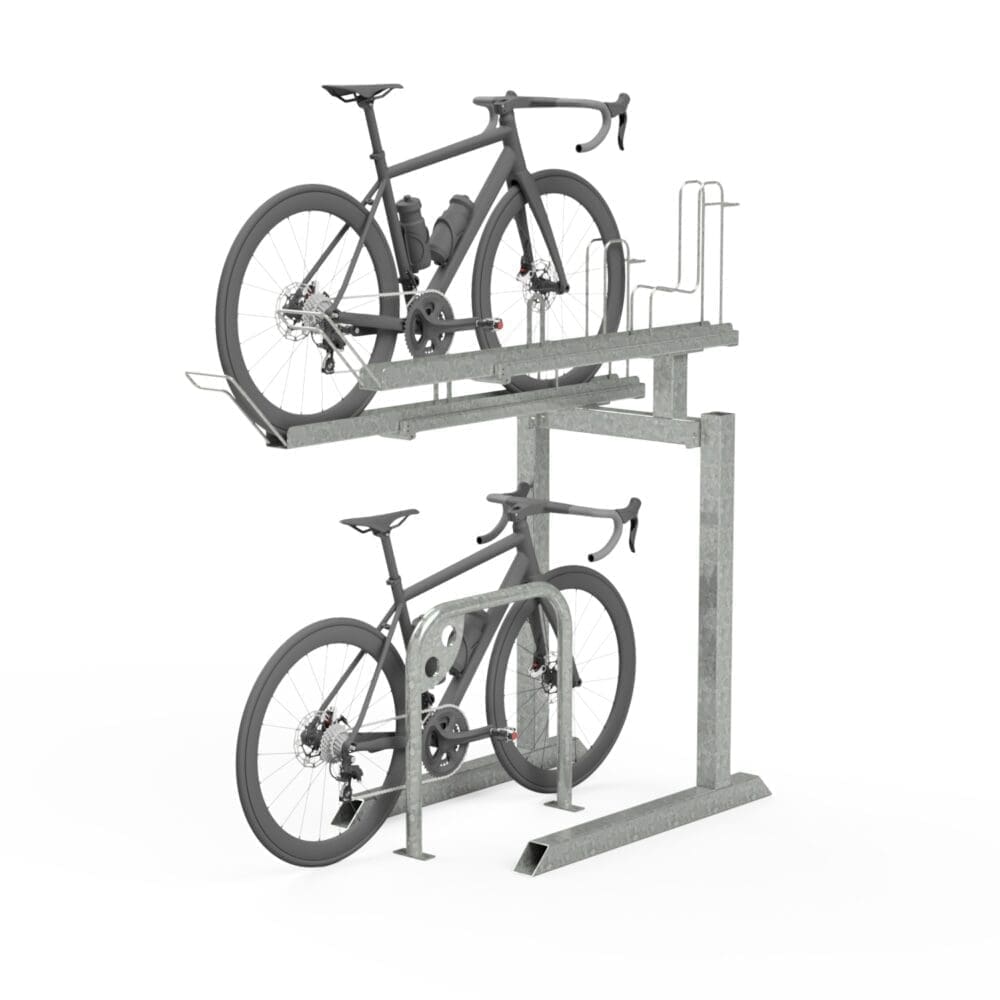

  • Sheffield Stands on Lower Tier: Secured by Design Sheffield Cycle Stands supplied as standard on the lower tier for improved compatibility with e-bikes and wider tyres.
  • Durable Construction: Hot-dipped galvanised steel to BS EN ISO 1461:2022 for long-term corrosion resistance.
  • Bespoke Finishes: Galvanised as standard, with optional polyester powder-coating in any RAL colour.

Need help with installation?

We offer a full installation service!

Product Description

Secured by Design Two Tier Bike Rack

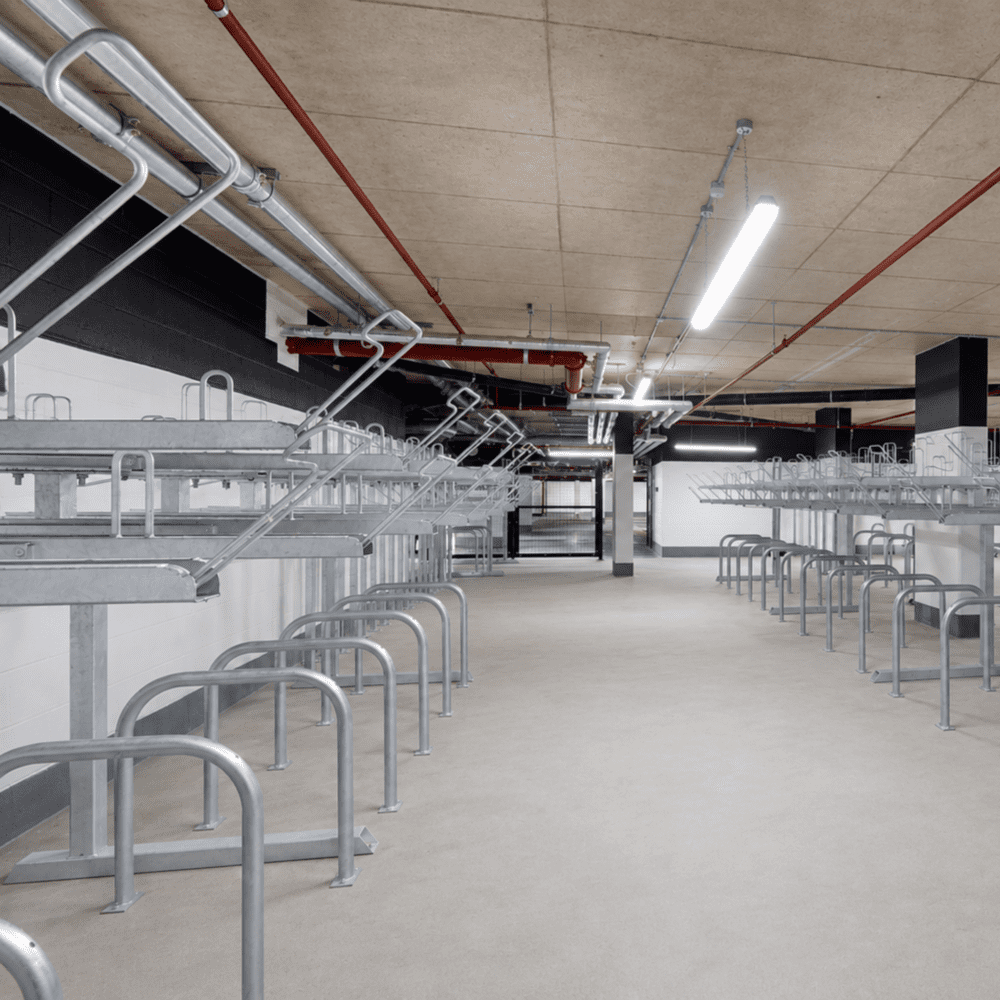

The Two Tier Cycle Rack is a high-density storage solution that has become a staple across residential, commercial and public sector projects throughout the UK. Our Secured by Design variant builds on this proven platform with Sold Secure Silver accreditation and Police Preferred Specification status, giving architects, developers and contractors a security-certified two tier rack for projects where independently accredited cycle storage is required.

Independently Tested Security

The Sold Secure Silver rating means this rack has been independently tested against a defined tool list including heavy manual and light electrical tools. For specifiers working to Secured by Design guidelines, local planning conditions or client security briefs, it provides documented evidence of attack resistance and a clear, auditable compliance route that standard, non-certified racks cannot offer. Heavy-duty welded locking hoops on both tiers allow cyclists to secure frame and wheels at multiple points, delivering reliable theft deterrence across every parking space.

Standard & Gas-Assisted Configurations

The Secured by Design Two Tier Cycle Rack is available in two configurations to suit project requirements and user expectations:

  • Standard Two Tier: The upper tier slides out and lowers using a counterbalanced mechanism, providing a simple loading and unloading process without external assistance. A cost-effective, low-maintenance solution for high-density environments.
  • Gas-Assisted Two Tier: The upper tier operates using tamper-proof gas struts, enabling smooth, controlled lowering and lifting with minimal effort. Ideal for developments where ease of use and accessibility are priorities. Available with a choice of V1 or V2 CHS handles to suit user preference and project specification.

Both configurations feature staggered rack heights for improved accessibility. Sheffield Cycle Stands are supplied as standard on the lower tier, offering enhanced compatibility for larger bicycles and e-bikes. Lower channel options are available as an upgrade to suit specific project requirements.

Space-Optimised Layout

The two tier system effectively doubles parking capacity compared to single-tier racks, making it the go-to solution for constrained internal areas. Standard spacing is 375mm centres on single-sided installations and 400mm centres on double-sided layouts, with bespoke spacing available on request. The modular format allows racks to be expanded to match current and future demand across phased developments.

Durable & Low Maintenance

Constructed from hot-dipped galvanised steel to BS EN ISO 1461:2022, the rack is built for long-term performance in high-traffic environments. Optional polyester powder-coating in any standard RAL colour allows the rack to integrate with the architectural setting of the site. Tamper-proof gas struts on gas-assisted models are engineered for sustained daily use with minimal servicing requirements.



Technical Specifications

  • Sold Secure Silver certified – Secured by Design, Police Preferred Specification
  • Hot-dipped galvanised steel to BS EN ISO 1461:2022
  • Heavy-duty welded locking hoops on upper and lower tiers
  • Sheffield Cycle Stands on lower tier as standard
  • Standard spacing: 375mm centres (single-sided), 400mm centres (double-sided)
  • Gas-assisted models: tamper-proof gas struts with V1 or V2 CHS handle options
  • Suitable for cycles with tyres up to 64mm width
  • Optional polyester powder-coating in any RAL colour
  • Installation is available nationwide but not required – supply-only orders are welcome

Benefits for Your Project

  • Secured by Design accredited with Sold Secure Silver certification
  • Doubles cycle parking capacity within the same footprint
  • Meets planning requirements for secure and independently certified cycle storage
  • Choice of standard or gas-assisted operation to suit user requirements
  • Contributes towards BREEAM and active travel objectives
  • Modular and expandable for phased developments
  • Low ongoing maintenance requirements
  • 10-year manufacturing defects warranty



Ready to Order or Request a Quote?

Contact our team for a tailored quote, design advice or installation options

Contact Us

Additional Information

Dimensions

Height – Minimum height required 2500mm (2400mm can be accommodated if required – please discuss with us)

Depth – 1900mm (an additional loading space of 1300mm is required)

Width – Centres of 375mm, total width dependant on quantity ordered
Lead Times

4-6 weeks – Contact us if required sooner

Specification Sheet

2D CAD Model

Dimensions Sheet PDF
